Heycarb Honeycomb Activated Carbon Manufacturer From China

HONEYCOMB ACTIVATED CARBON FILTER SERIES

We supply honeycomb activated carbon filter in various sizes and specifications at cost-effective prices.

Free sample, Water resistant, high strength

Customized CPSI, Size, CTC, Shape…

honeycomb activated carbon filter

Heycarb Honeycomb Activated Carbon

Honeycomb activated carbon is an activated carbon material with a honeycomb structure.

It is usually made  of high-quality coal or coconut shell  or wood or mixing activated carbon powder as raw materials with a binder and preparing it through processes such as molding, carbonization and activation.

It is named after its three-dimensional mesh or honeycomb-shaped pore structure.

This special structural design greatly increases its specific surface area and adsorption capacity, while also providing lower airflow resistance, making it an efficient adsorption material.

Honeycomb activated carbon is commonly used in air and waste gas purification, water treatment and chemical filtration. Its main advantages include high adsorption efficiency, good regeneration performance and high mechanical strength.

The pore structure of honeycomb activated carbon is usually divided into two types: micropores and mesopores, which can effectively adsorb a variety of pollutants, such as organic gases, odorous gases and some inorganic substances.

Heycarbons is an excellent, reliable, trustworthy and professional China honeycomb activated carbon supplier, owning 16 production patents.

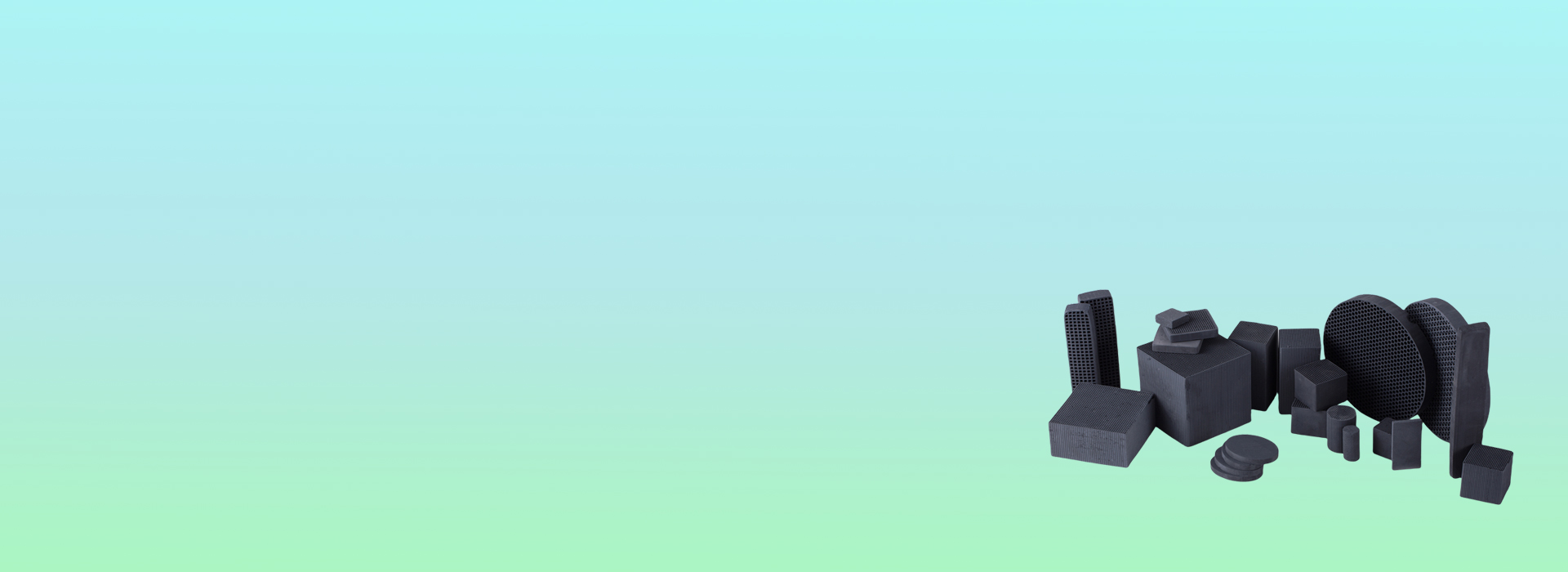

Heycarb Honeycomb Activated Carbon Types

honeycomb activated carbon

Square Honeycomb

Activated Carbon

honeycomb activated carbon

Round Honeycomb

Activated Carbon

honeycomb activated carbon

Rectangular Honeycomb

Activated Carbon

honeycomb activated carbon

Irregular Honeycomb

Activated Carbon

*Water resistant

*Customized size(mm):100*100*100,50*50*50….

*CTC40-50%, 50-60%, 60-70%,70-80%

*Can be impregnated, can load catalyst

Iodine value:600-1000mg/g

Specific Surface Area (㎡/g):700-1050

CPSI: 100-200

Moisture (%): 3-6

Wall thickness (mm): 1-1.5

Adsorption rate of benzene %: 30-60

Air tower wind speed: 0.8M/S

Advantages

  • Low wind resistance, strong adsorption performance
  • High adsorption capacity and long service life
  • High strength, easy to install and use
  • Custom sizes and specifications available
  • Suitable as a catalyst and as a carrier for impregnation

Application

  • Low concentration and large air volume VOCs gas treatment
  • Aquariums and drinking water treatment
  • Air purification
  • H2s benzene, classified organic gas treatment
  • Catalysts and carriers

Heycarbons Honeycomb Activated Carbon Production Process

1. The raw materials are extruded

2. Made into the desired shape with a mold, cut, dried

3. Loaded into refractory bricks (heated evenly, no deformation), and the whole truck is sent to the carbon activation furnace for activation

4. Testing, packaging

Heycarb Honeycomb Activated Carbon Application

Industrial waste gas treatment

Industrial gas purification (such as CO2, N2, etc.).Petrochemical industry production, natural gas purification, desulfurization,

Air purification and deodorization of biochemical, paint industry, underground sites, leather factories, animal husbandry sites,…

Air purification

Used to remove harmful gases in the air, such as volatile organic compounds (VOCs), ammonia and sulfides.

For gas phase adsorption of activated carbon, benzene, toluene, xylene, acetone, oil and gas, CS2 and other organic solvents adsorption and recovery.

Air Filter

Suitable for indoor air purification filter, restaurant fume exhaust gas treatment filter.

Wastewater treatment

It is suitable for the adsorption and removal of organic matter in water bodies and is used in drinking water treatment and sewage treatment.
