Pelletized Activated Carbon Manufacturer From China
- Over 18 years experience in Pelletized activated carbon manufacturing.
- Annual output 18000 tons
- 16pcs Production Patents.
- High CTC 120%, Clean, Uniform size.
- unique airflow carbonization method instead of carbon burning, smoother，cleaner and strength.

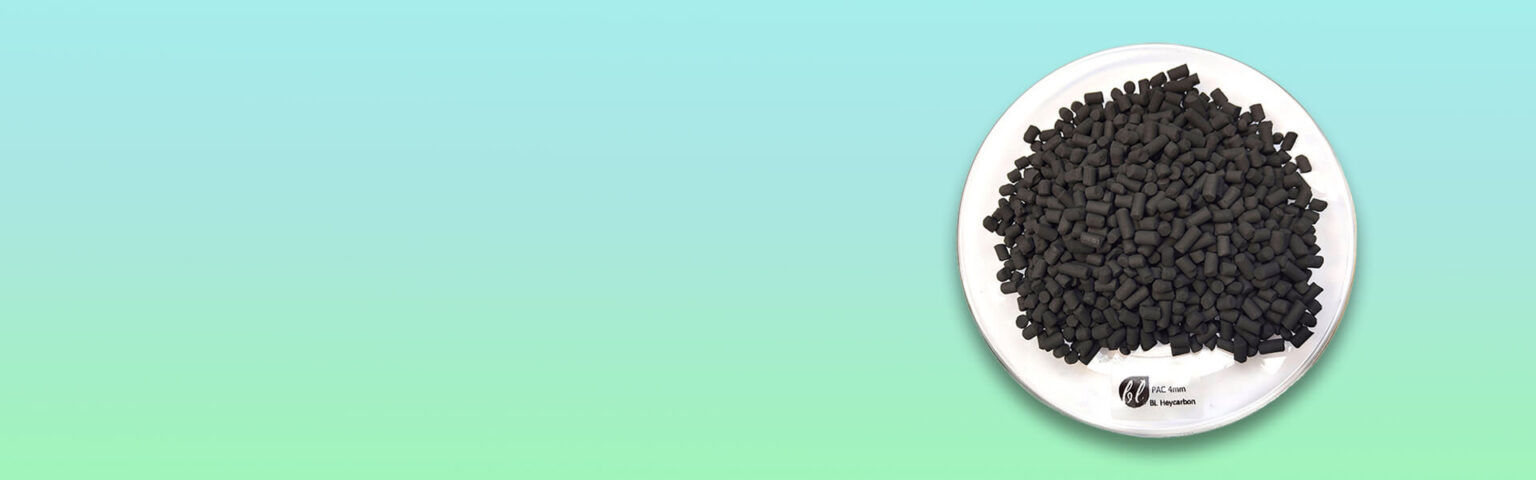

Pelletized Activated Carbon
Heycarbons is a columnar activated carbon pellets factory supplier, we choice high-quality anthracite or coconut shell as raw material, using a kerosene binder to manufactre. and we accept OEM.
The process involves milling, compounding, extrusion, carbonization, and activation to produce activated carbon in cylindrical form. The extruded activated carbon is exceptionally hard and resistant to mechanical breakdown due to the unique binding and extrusion process used during its manufacture.
Heycarbons use a unique airflow carbonization method instead of carbon burning, which result is smoother，cleaner and greater strength.
Additionally, we employ special cooling equipment that does not require cooling on the ground, ensuring that the activated carbon does not fall to the ground during the entire process and remains free from impurities.
This type columnar Activated Carbon has an extensively enhanced adsorption capacity for organic vapors, coupled with high meso- and macroporosity to ensure rapid diffusion of adsorbate to adsorption sites.
This Cylindrical Activated Carbon Pellets，It exhibits a high adsorption capacity, providing prolonged adsorption cycles. Coupled with low steam consumption rates during the regeneration cycle, this results in a low total operating cost. Also suitable for H2S and VOC adsorption in air treatment processes, as well as for the purification of industrial gas, flue gas, biogas purification and natural gas.
Video about how we control quality of the activated carbon, please watch it.
Pelletized Activated Carbon Types
China Pelletized Coal Activated Carbons
Coal-based activated carbon pellets mostly use high-quality Low ash, low sulfur, and low phosphorus anthracite as raw material, but we also choose different areas of materials coal to mix and match according to the customer’s specific use and high index requirements of a certain item.
They have reasonable pore structure, high CTC, and high strength. It has the characteristics of a smooth appearance and no cracks, is lightweight, has strong adsorption capacity, good wear resistance, high mechanical strength, and long service life. It, can also impregnated mercury chloride as a catalyst, or impregnated with sulfur to remove mercury.
You can ask impregnate KOH, NAOH, K2CO3, KI, CuO, MgO, KMnO4, K2CO3, and other chemicals to remove acidic gases such as H2S, and sewage odor control. or impregnated sulfur, sulfuric acid, and phosphoric acid to remove alkaline gases such as ammonia.
- Size (D :mm): 0.9mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm
- CTC(%): 20, 30, 40, 50, 60, 70, 80, 90，100-120
- Iodine value: Mg/g 500-1100
- Hardness (%): 90-99
- Bulk density: 400-520kgs/m3
- Moisture (%): ≤3
- Ash (%): 8% , 10% , 12% ,14%
- PH: 8-11
Coal Columnar Catalytical Activated Carbons Pellets OEM
Coal Pelletized Columnar Catalytical Activated Carbons, Catalyst added during production or impregnate the catalyst after production is completed , also We call it pre-adding or post-impregnating catalytic activated carbon.
such as you can ask MgO Magnesium oxide modified activated carbon catalyst, CuO Copper oxide modified activated carbon catalyst, Metal oxide supported on activated carbon.
You can use it for acid gas treatment such as H2S, water washing regeneration, and high strength.
- Size (D :mm): 0.9mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm
- CTC(%): 20, 30, 40, 50, 60, 70, 80, 90，100-120
- Iodine value: Mg/g 500-1100
- Hardness (%): 90-99
- Bulk density: 450-550kgs/m3
- Moisture (%): ≤3
- PH: 8-11
Coconut shell Pelletized Activated Carbon
Coconut shell columnar activated carbon pellets is made of high-quality coconut shell charcoal powder as raw material and processed through a series of production processes. It has a black columnar appearance, high strength, easy regeneration, high iodine value, Microporous development, and good adsorption performance.
Coconut extruded activated carbon especially suitable for use in CIC gold refining and solvent recovery industries, especially tape factories solvent recovery.
- Size (D :mm): 0.9mm, 1.5mm,2mm, 3mm, 4mm, 5mm,6mm, 8mm
- CTC(%): 50, 60, 70, 80, 90, 120
- Iodine value: Mg/g 500-1500
- Hardness (%): 95-99
- Bulk density: 400-520kgs/m3
- Moisture (%): ≤3
- Ash (%): 6-8
- PH: 8-11
Wood Pelletized Activated Carbon
Wooden columnar activated carbon is made of high-quality wood powdered carbon as raw material. After extrusion, it is activated by physical steam method.
Can be impregnated with H2S, NaOH, C4H11NO2, etc.
It can adsorb sulfide, NO, CO, NO2, CO2, and is used for the refined removal of H2S and some organic sulfur in various gases such as biogas and liquefied gas.
It has the characteristics of high-efficiency and fine desulfurization. When the H2S concentration is not high, it can be removed to less than 20ppm and the price is low.
- Size: D: 1.5, 2, 4, 6, 8mm
- Iodine value: Mg/g 300-500， 600-1100
- Hardness %: 95-99
- Bulk density g/cm3 0.35-0.55
- Ash %: 6% max, 8% max
- Moisture %: 5 max
- PH: 8-11
Custom Pelletized Activated Carbon Solution
Heycarbons provides a full range of activated solutions at competitive prices.
What Clients Say on Our Activated Carbon
Custom OEM Pelletized Activated Carbon
Heycarbons has proudly served the activated carbon industry with high-quality products for over 18 years, we can customize cylindrical activated carbon for your project.
- Customize different raw materials according to different applications.
- Cost-effective solutions customized according to customer applications. such as impregnated Alkaline or acidic substances, KOH, NAOH, K2CO3, KI, CuO, MgO, KMnO4... Accept OEM
- Customized bag, carbon pellets size, CTC, iodine value, ash, H2S working capacity, etc.
Other Activated Carbon Solutions
Drinking Water Treatment
Provide 8*16, 8*30, 12*40, 30*60, 50-150 mesh high iodine value low ash granular carbon for water treatment and water device – CTO, UDF.
Wastewater Treatment
Supply of granular and powdered activated carbon for wastewater treatment to remove COD, BOD, heavy metals, organics, iodic acid, odors, hydrocarbons, color, etc.
VOCs Removel
Our activated carbon can help remove volatile organic compounds (VOCs) from the air by removing contaminants and impurities.
Gold Recovery
Provides high iodine 6-12, 8-16mesh coconut shell granular carbon for gold mining. (CIC, CIP, CIL)
Air Purification
We provide 4mm, 0.9-8mm pelleted and impregnated pellet activated carbon, and granular carbon for various exhaust gas treatment, vapor recovery, VOCs removal, biogas H2S removal, etc.
Solvent Recovery
Provide EAC carbon for high-end air purification or various gas solvent recovery, such as benzene, toluene, and other solvents, Dichloromethane solvent recovery, and tape factory solvent recovery.
Catalyst Carrier
A special process, adding a Special substance in Pellet (Extruded) activated carbons, also named Catalytical activated carbons, used for acid gas treatment such as H2S, water washing regeneration, high strength
Steps to Custom Pelletized Activated Carbon
Consultation
By understanding your needs and requirements, our salesmen work with you to submit the appropriate activated carbon solution.
Quotation
Heycarbon expert customer service will provide you with a free quote based on your requirements as well as product specifications and quantities.
Production
Heycarbon has sufficient inventory and strong production capacity, and will report production progress to you from time to time.
Shipping
We know you need to receive the product as soon as possible, after rigorous quality checks and protective packaging, by fedex shipping.
Pelletized Activated Carbon FAQs
Heycarb provides on demand activated carbon solutions worldwide, product quality and customer service are highly rated by our partners and customers.
- Testing of selected raw materials
- Comprehensive display and monitoring of production temperature and time
- Sampling inspection of finished products
- Support any form of third-party testing , such as SGS
1. T/T Deposiit + Balance against copy of B/L
2. L/C
3. T/T deposit + L/C for balance
1. If necessary, the technician can go to the site to guide .
2. Order goods are consistent with the sample and TDS
3. Any quality problems occur, the seller will provide solutions within 24 hours.
4. If the package is damaged due to the seller’s negligence, resulting in a shortage of goods,
the seller should make compensation based on mutual agreement.
For customers’ trial orders, we actually do not have a specific MOQ, any amount is acceptable.
We have to choose a cost-effective transportation method and quantity based on your specific situation.
Normally , 5-7days , also depend on quantity
Yes, we provide samples for free.
Normally 25kgs/bag , 20kgs/bag , 500kgs/bag , black bag
Support any OEM drawing design bag .
Are You Looking for Pelletized Activated Carbon Manufacturers?
Contact us for design assistance, free quote, and expert advice today.
Your inquiry will be replied within 24 working hours, and we respect your privacy.
