Activated Carbon For Gas Mask-Heycarbons Manufacturer From China
Activated carbon has strong adsorption capacity and can absorb a variety of toxic substances. Activated carbon can be used in gas masks A, B, E, K to protect human health.
What is an Activated Carbon Mask?
Using activated carbon technology in masks can enhance the protective effect.
Physical adsorption
Activated carbon is carbonized and activated to form a developed pore structure that can efficiently adsorb gas molecules.
When the toxic gas in the air passes through the activated carbon layer, the gas molecules are attracted by the surface adsorption force in the micropores and adhere to the surface of the activated carbon, and no longer enter the respiratory system.
Chemical adsorption
By impregnating activated carbon with specific chemical reagents (such as acids, alkalis, metal oxides, etc.), it is allowed to neutralize, redox or complex with certain toxic gases. Activated carbon can convert toxic gas molecules into non-toxic or low-toxic substances, improving the filtering effect.

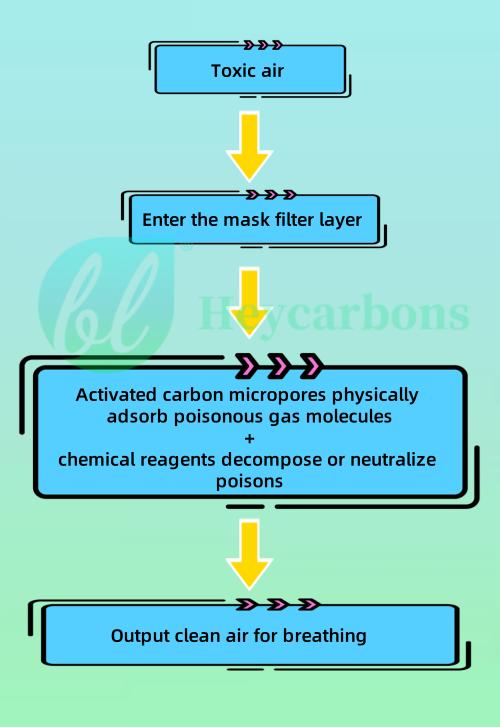

Activated Carbon For Fas Mask Treatment Process
Toxic gas enters the mask filter layer
When a person breathes while wearing an activated carbon mask, outside air (which may contain toxic or harmful gases such as formaldehyde, benzene, ammonia, sulfur dioxide, etc.) is inhaled.
Activated carbon absorbs toxic gases
Toxic gases pass through the activated carbon layer, which is built into the mask to effectively capture and adsorb molecules in the air.
- Activated carbon mainly adsorbs toxic molecules on its surface through physical adsorption (van der Waals forces).
- For some gases, chemical adsorption can also be performed, that is, the surface of the activated carbon may be pre-treated with some chemical agents (such as acids, alkalis, metal oxides) to react with toxic gases and convert them into harmless substances.
Clean air enters the respiratory tract
After the toxic gas is adsorbed, the treated clean air continues to flow into the mouth and nose and is inhaled by the human body.
Lifetime Limitation
Activated carbon has the characteristic of adsorption saturation. Once the pores are filled with toxic gases, the filtering effect of the mask will be significantly reduced.
Therefore, the activated carbon mask needs to replace the filter element regularly, otherwise it may cause reverse adsorption (the adsorbed harmful substances will be released again).
Activated Carbon For Gas Mask Protection Type
According to different types of poisons, the protection types can be divided into the following types: A B E K, etc. (according to GB2890-2009). The detailed information is listed in the table below.
| Filter Type | Color | Toxic gas types protected |
|---|---|---|
| A | brown | Organic gas |
| B | grey | NH3, H2S |
| E | yellow | Acid Gas |
| K | green | NH3, H2S |
| H2S | blue | / |
| Hg | red | Mercury vapor |
| CO | white | CO |
| ABEK | grey | Comprehensive protection |
| According to GB2890-2009 | ||
Is activated carbon safe to breathe?
Activated carbon is encapsulated in the filter element of the gas mask and is safe for the human body.
Activated carbon captures harmful gases and particles in the air through physical and chemical adsorption, and does not release toxic substances or actively harm the human respiratory system.
In gas masks, activated carbon is usually encapsulated in the filter element and is not directly inhaled. Therefore, the user will not inhale activated carbon dust and will not cause physical damage to the lungs.
Activated carbon mask benefits
1. Super strong adsorption capacity
Activated carbon has a high specific surface area (the surface area per gram of activated carbon can reach 500-1500 square meters), which can effectively adsorb a large number of toxic molecules.
Its porous structure can capture tiny molecules, including: Organic solvents (benzene, formaldehyde, gasoline vapor), acidic/alkaline gases (such as chlorine, ammonia), etc.
2. Strong customizability (chemical modification)
Activated carbon can enhance its adsorption capacity for specific poisons through chemical impregnation or surface treatment:
- It can adsorb acidic gases after adding alkaline substances;
- It can treat alkaline gases or reducing poisons after adding acid or oxidant.
3. Rapid response, high efficiency
The contact time of gas passing through the mask filter is short, but activated carbon can complete adsorption in a very short time to ensure the user’s breathing safety.
Best Activated Carbon Gas Mask Product Type
Depending on the type of poison, different types of activated carbon are required for gas filtration. Heycarbons has a wide variety of products for you to choose from.
There are protective carbon products such as HEY A, HEY AE, HEY K, HEY ABEK, etc.
In fact, in addition to coconut shell activated carbon, we also recommend using coal-based pelletized activated carbon with an iodine value of no less than 1000 mg/g, and the diameter is mostly 0.9 mm. After the customer purchases the base carbon, they can do the impregnation processing themselves.
In addition to the types listed below, if you need a combination type or other protection types, please contact us for customization.
HEY A Coconut shell activated carbon
Activated carbon for preventing organic gas also uses high-quality coconut shell charcoal as the base material, and is selected for self-priming full-face and half-masks.It has excellent adsorption effect formost organic gas poisonous gases. Experiments have proved that it has a good effect on removing organic gases and vapors, such as benzene and its homologues, gasoline, acetone, carbon disulide, ether and other organic gases.
| HEY A Coconut shell activated carbon Specification | ||
|---|---|---|
| Mesh | 8-16 | 12-20 |
| Moisture content | % | ﹤5 |
| Bulk density | kg/m3 | 380~420 |
| Strength | % | ﹥95 |
| The amount of carbon in the filter box | g | 50~70 |
| Protection time [national standard] | min | ≥45 |
| Protection time [penetration] | min | ≥90 |
HEY A Coconut shell activated carbon application field
It is suitable for toxic organic gas environment such as painting, decoration site, gasoline transportation, pesticide spraying, experimental operation, furniture making, etc.
HEY AE Coconut shell activated carbon for respirator
AE special impregnated activated carbon for respirator is prepared by alkaline solution loading and calcination. The product has the properties of large specific surface area, reasonable pore size distribution, and high mechanical strength. It is widely used to remove organic gas, chlorine gas, hydrochloric acid gas, sulfur dioxide, hydrofluoric acid and low-concentration hydrogen sulfide and other acid gases in air or other gases.
| HEY AE Coconut shell activated carbon Specification | ||
|---|---|---|
| Mesh | 8-16 | 12-20 |
| Moisture content | % | ﹤10 |
| Bulk density | kg/m3 | 430~470 |
| Strength | % | ﹥95 |
| The amount of carbon in the filter box | g | 45~55 |
| Anti-acid protection time (national standard) | min | ≥25 |
| Anti-benzene protection time (national standard) | min | ﹥45 |
| Protection time (benzene penetration) | min | ≥65 |
| Protection time (sulfur dioxide penetration) | min | ≥35 |
HEY AE Coconut shell activated carbon application field
Generally used in chemical plants, garbage disposal, man-made fibers, dyes and other pickling gas environments, and suitable for toxic organic gas environments such as painting, decoration sites, gasoline transportation, pesticide spraying, experimental operations, and furniture making. It has a good adsorption effecton acid and poisonous gases such as chlorine, carbon dioxide, nitrogen oxides, phosphorus, hydrogen sulfide, nitrogen tetroxide, and chlorine-containing organic pesticides.
HEY K Anti-ammonia activated carbon respirator
The impregnated activated carbon for ammonia removal is mainly aimed at the adsorption of alkaline gases such as ammonia and irritating gases. The product uses high-strength, well-developed pore coal-based columnar carbon or coconut shell activated carbon as raw materials, and is processed through advanced production equipment and cutting-edge production technology. And through the reasonable particle size ratio, the impregnated activated carbon produced is guaranteed, and the adsorption capacity of ammonia and other related derivatives is maximized.
| HEY K Coconut shell activated carbon Specification | ||
|---|---|---|
| Moisture content | % | ﹤10 |
| Bulk density | kg/m3 | 560~600 |
| Strength | % | ﹥95 |
| The amount of carbon in the filter box | g | 65~75 |
| Protection time [national standard] | min | ≥25 |
| Protection time [penetration] | min | ≥35 |
HEY K Anti-ammonia activated carbon for respirator application field
The product is used in scenarios such as pharmaceutical factories, chemical plants, synthetic fibers, plastics, fertilizer manufacturing, cold storage operations, refrigeration, and septic tank operations.
HEY ABEK Comprehensive protection carbon
ABEK type activated carbon is made of high-quality coconut shell charcoal. Through carrying catalyst carrier and deep processing on the original substrate, for organic gases, chlorine, chlorine dioxide, hydrogen chloride, sulfur dioxide, hydrogen sulfide for escape only, ammonia, methylamine and formaldehyde have good protective effects.
| HEY ABEK Comprehensive protection carbon | ||
|---|---|---|
| Mesh | 12-20 | 14-25 |
| Moisture content | % | ﹤10 |
| Bulk density | kg/m3 | 480~520 |
| Strength | % | ﹥95 |
| The amount of carbon in the filter box | g | 70~120 |
| Protection time [penetration]-ammonia | min | ≥35 |
| Protection time [penetration]-sulfur dioxide | min | ≥35 |
| Protection time [penetration]-benzene vapor | min | ﹥65 |
| Protection time [penetration]-cyanogen chloride | min | ≥45 |
HEY ABEK Comprehensive protection carbon application field
Suitable for complex toxic gas environment. For details, please contact the sales engineer representative.
In addition to the types listed, if you need a combination type or other protection types, please contact us for customization.
Activated Carbon Mask Customer Case
A Turkish customer needs activated carbon for masks to remove hydrogen cyanide gas. According to the customer’s needs, the product specifications we recommend are:
- 16×30 mesh
- Specific surface area: 1000-1200 m2/g
- Iodine value: ≥ 1000mg/g
- Hardness (%) : ≥98
- Bulk density: 0.45-0.55 g/cm3
- Moisture: <2%
- Ash: <3%
- Impregnant content: Impregnation: Five kinds, each with different contents (customizable)
Activated Carbon For Type A Gas Mask Customer Case
A customer wants to produce a type-A gas mask, using isohexane test, requiring the protection time to reach more than 65 minutes.
Coconut shell impregnated activated carbon can be used as the core material of type A protective equipment; coal-based impregnated activated carbon with a carbon tetrachloride adsorption rate of 70% can also meet the requirements.
If there are many poisons to be handled, multiple impregnations are required.
